FG FGX Turbo Stage 2 Intercooler - Race Edition
$1,099.90 - $1,149.90
DESCRIPTION
Bundle and save with the ANTZ Performance Stage 2 Race Intercooler Core for Ford FG and FGX Falcon turbo models. Let’s face it — most “street-size” intercoolers offer only a minor improvement over the factory unit, which is why we recommend stepping straight up to a true race core (Stage 2 intercooler).

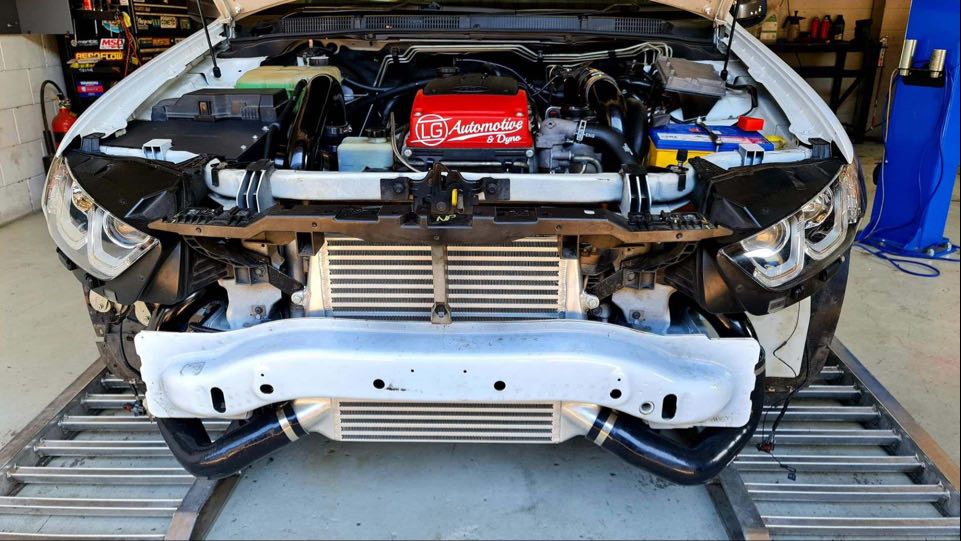

Our FG Race Edition intercooler has been proven in real-world testing on an FG XR6 Turbo producing 518.6rwkw (approximately 700rwhp) on a Mainline dyno, demonstrating the effective cooling performance and airflow capability required for high-performance applications.
Designed for enthusiasts wanting a genuine intercooler upgrade without overspending, this Stage 2 core offers excellent cooling efficiency, reduced intake air temperatures, and reliable performance under boost.

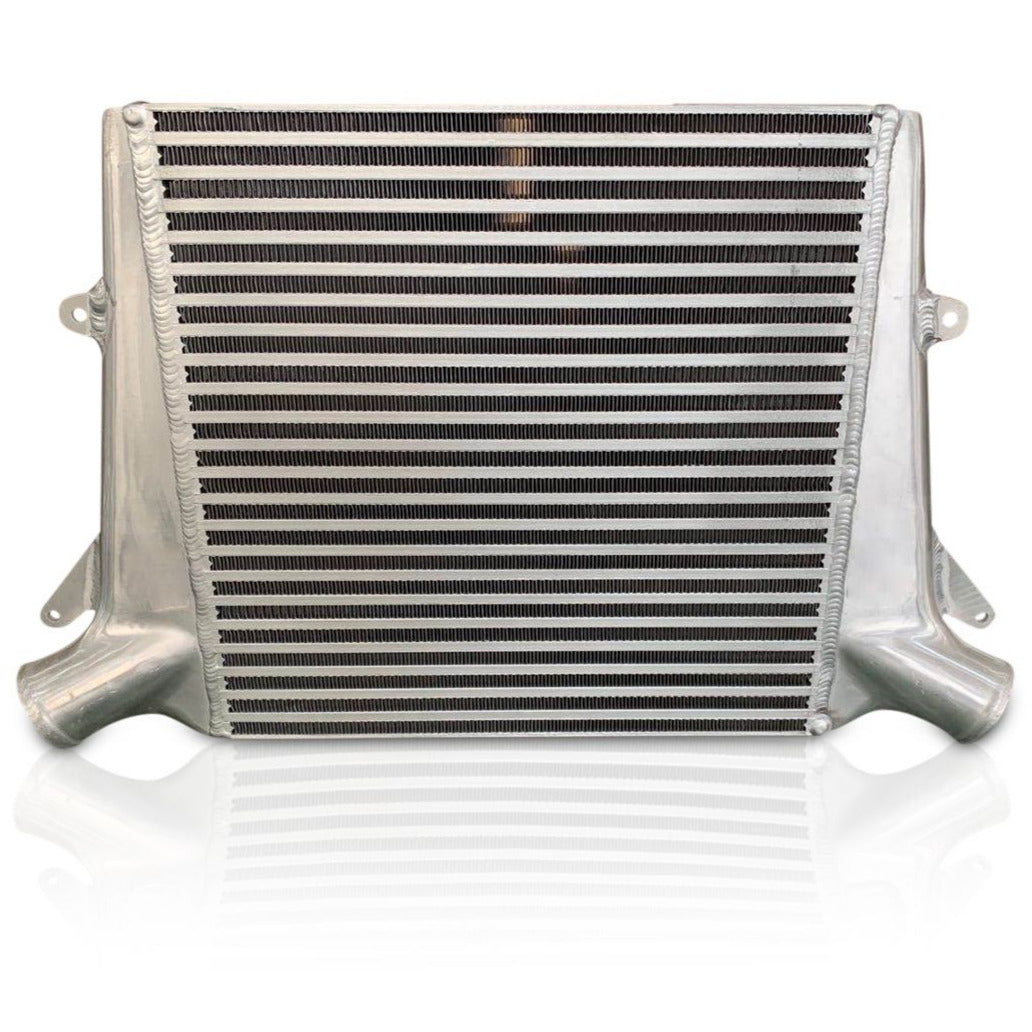

Constructed using a bar-and-plate core design with TIG-welded aluminium construction, the intercooler features a raw aluminium finish and 2.5" inlet and outlet end tanks. It also utilises factory intercooler mounting points for easier fitment.
Please note: Aftermarket intercooler piping is required, as factory piping will not fit this intercooler.
KEY FEATURES:
- Stage 2 race intercooler core
- Proven cooling performance on high-power applications
- Effective reduction in intake air temperatures
- Large bar-and-plate core design
- TIG-welded aluminium construction
- Raw aluminium finish

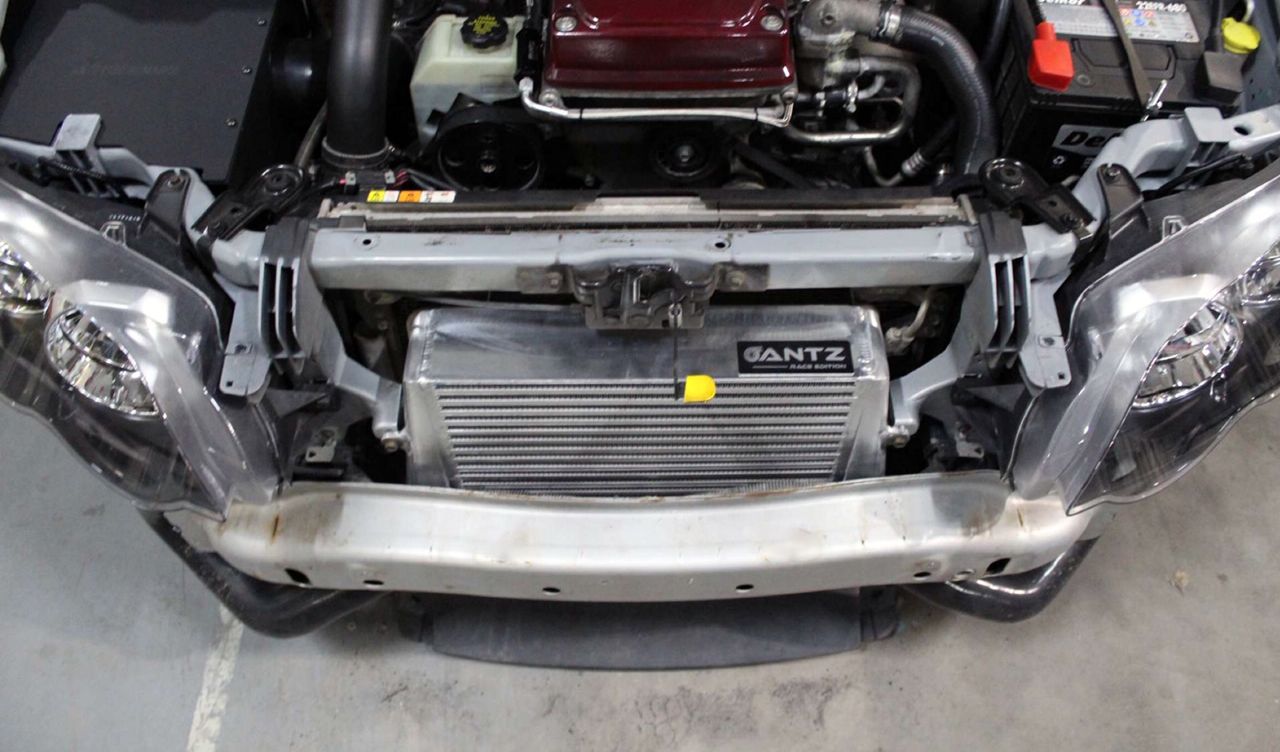

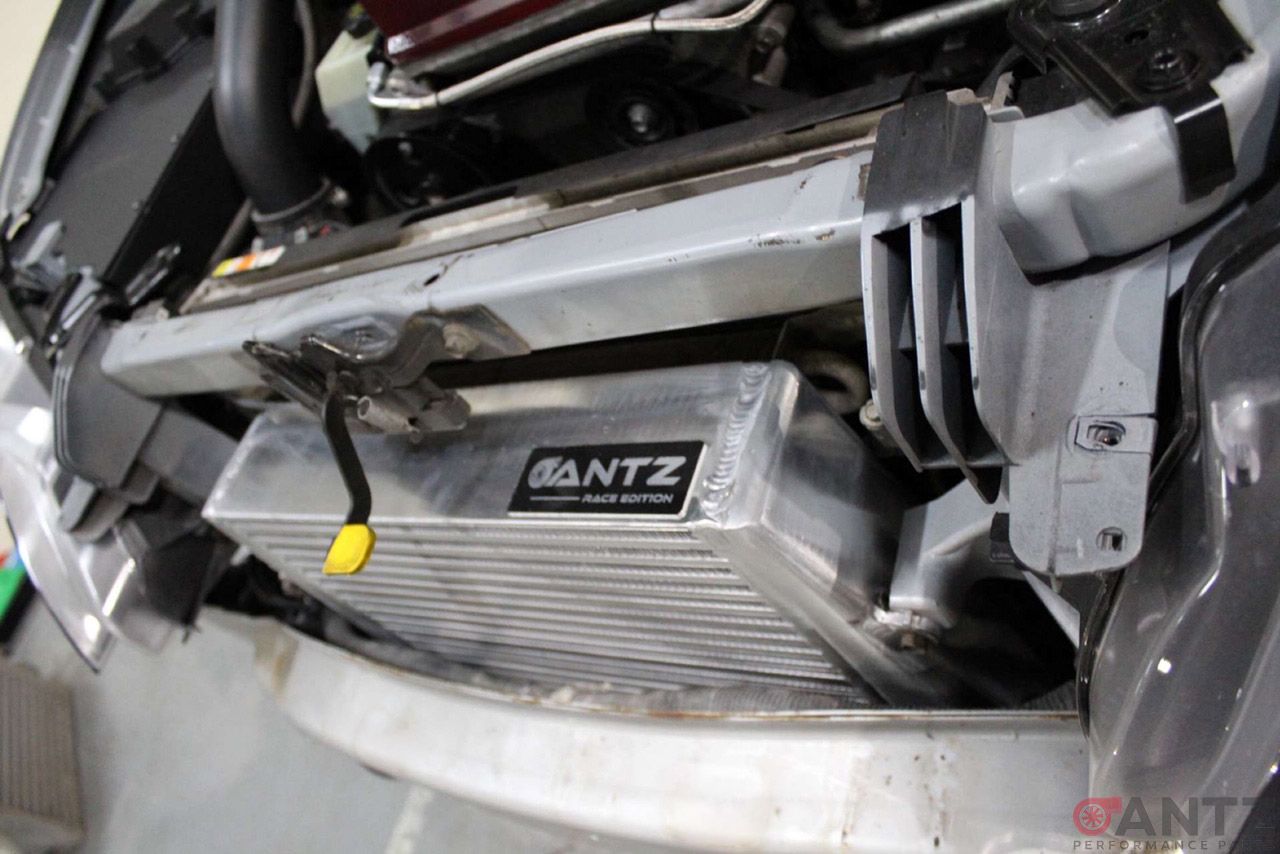

- Utilises factory intercooler mounting points
- Designed for aftermarket intercooler piping setups
INTERCOOLER SPECIFICATIONS:
- Core dimensions: 410 × 400 × 90mm
- Inlet / outlet size: 2.5" (64mm)
- Approximate weight: 10kg
OUR PROMISE:
We leak-test every intercooler we produce.
Each ANTZ intercooler is pressure-tested to a minimum of 40 psi before packaging and dispatch to ensure reliability and peace of mind.
