FG FGX Turbo Stage 2 Intercooler Kit Bundle

Please note piping kit is on Back order, Stock is due to arrive Mid-Late June, Packages will ship together when fresh stock arrives



Bundle and Save!

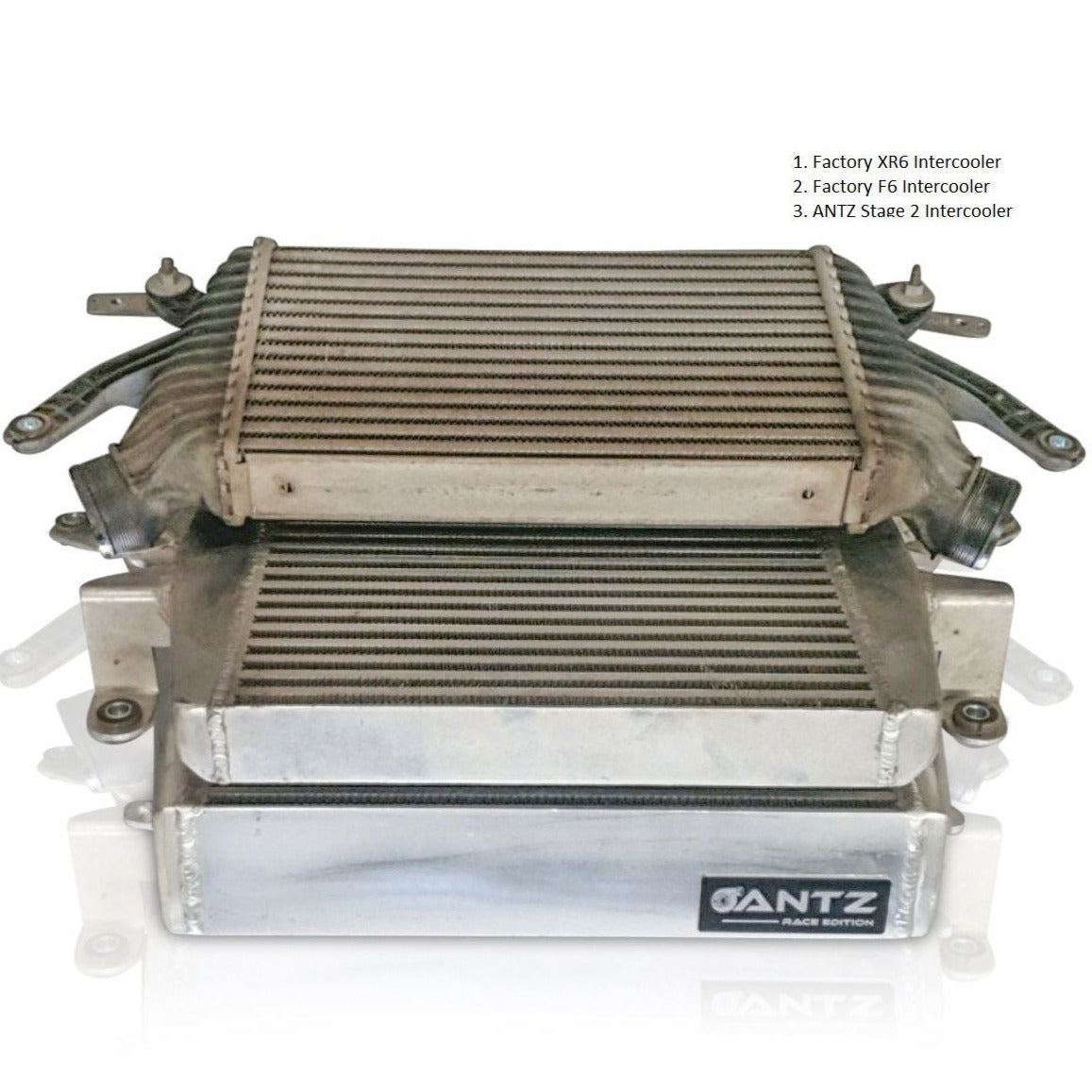

Lets face it, 'Street' size intercoolers are a minor upgrade over your stock intercooler, so much so; we recommend to go straight to a race core (aka Stage 2 intercooler). We have used our FG race edition intercooler on a FG XR6 turbo producing 518.6rwkw (approx 700rwhp) on a mainline dyno, results supporting effective and efficient cooling capabilities. So for those hunting a true intercooler upgrade on a budget, this is a great way to gain performance without breaking the bank.

Features:

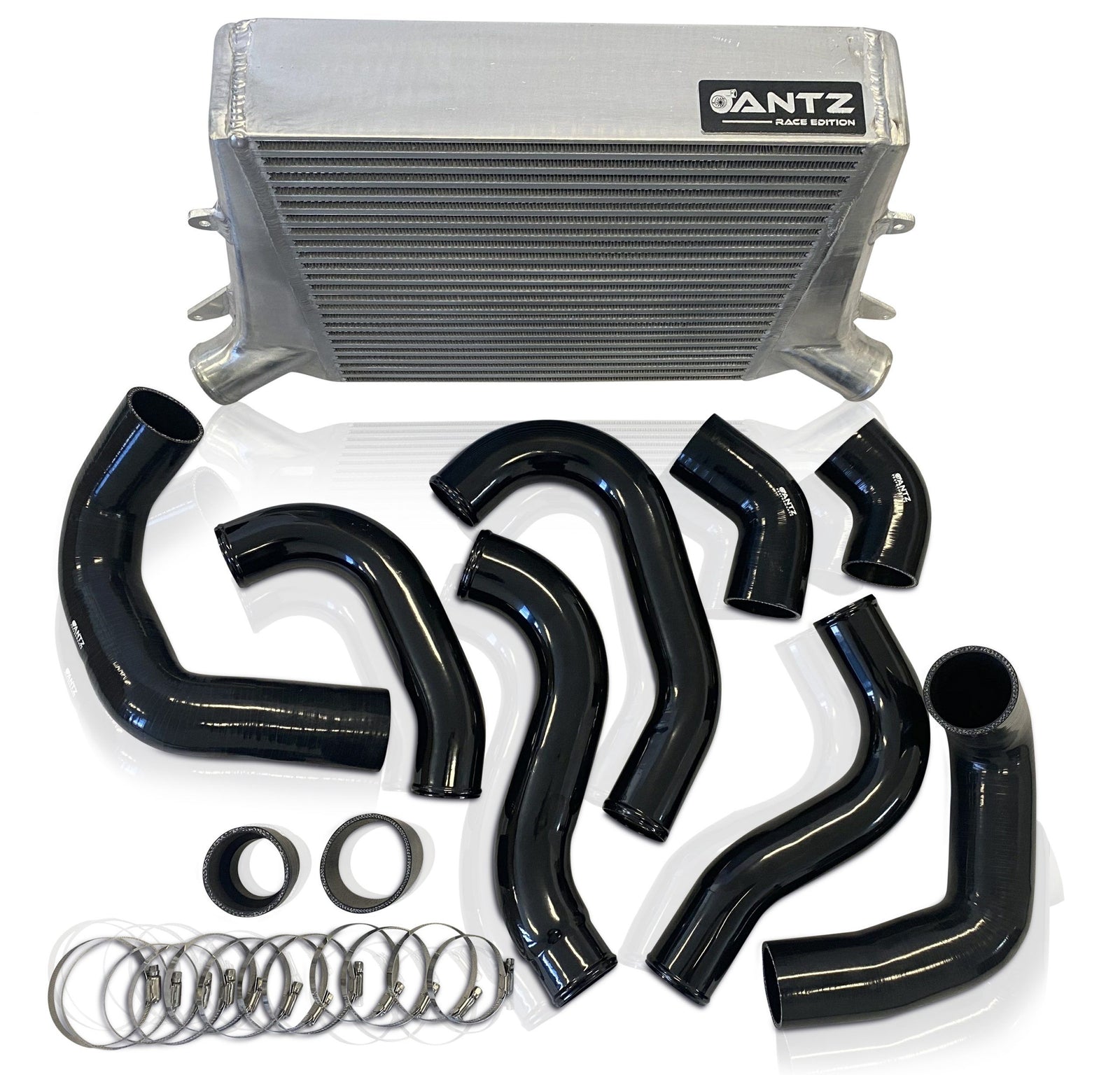

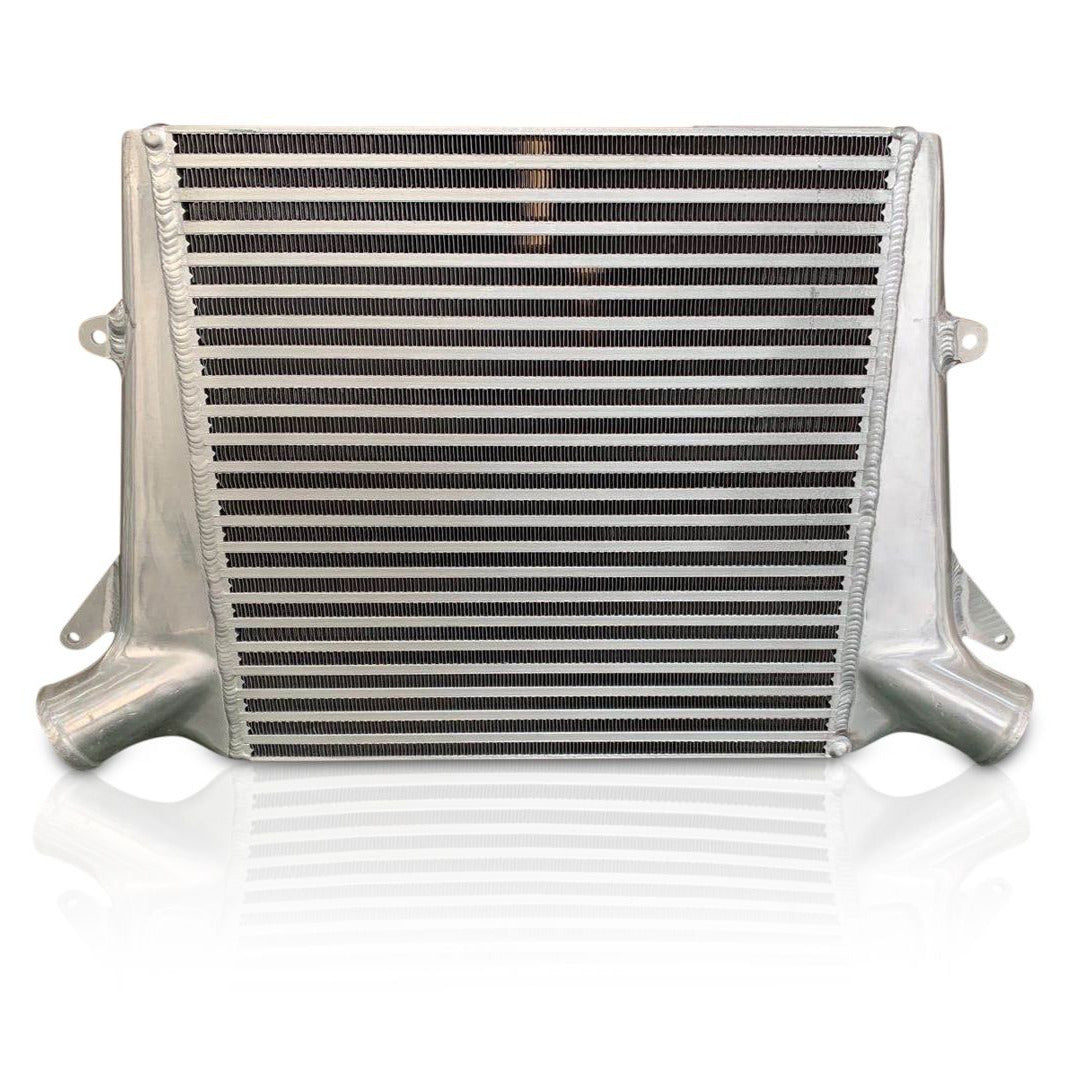

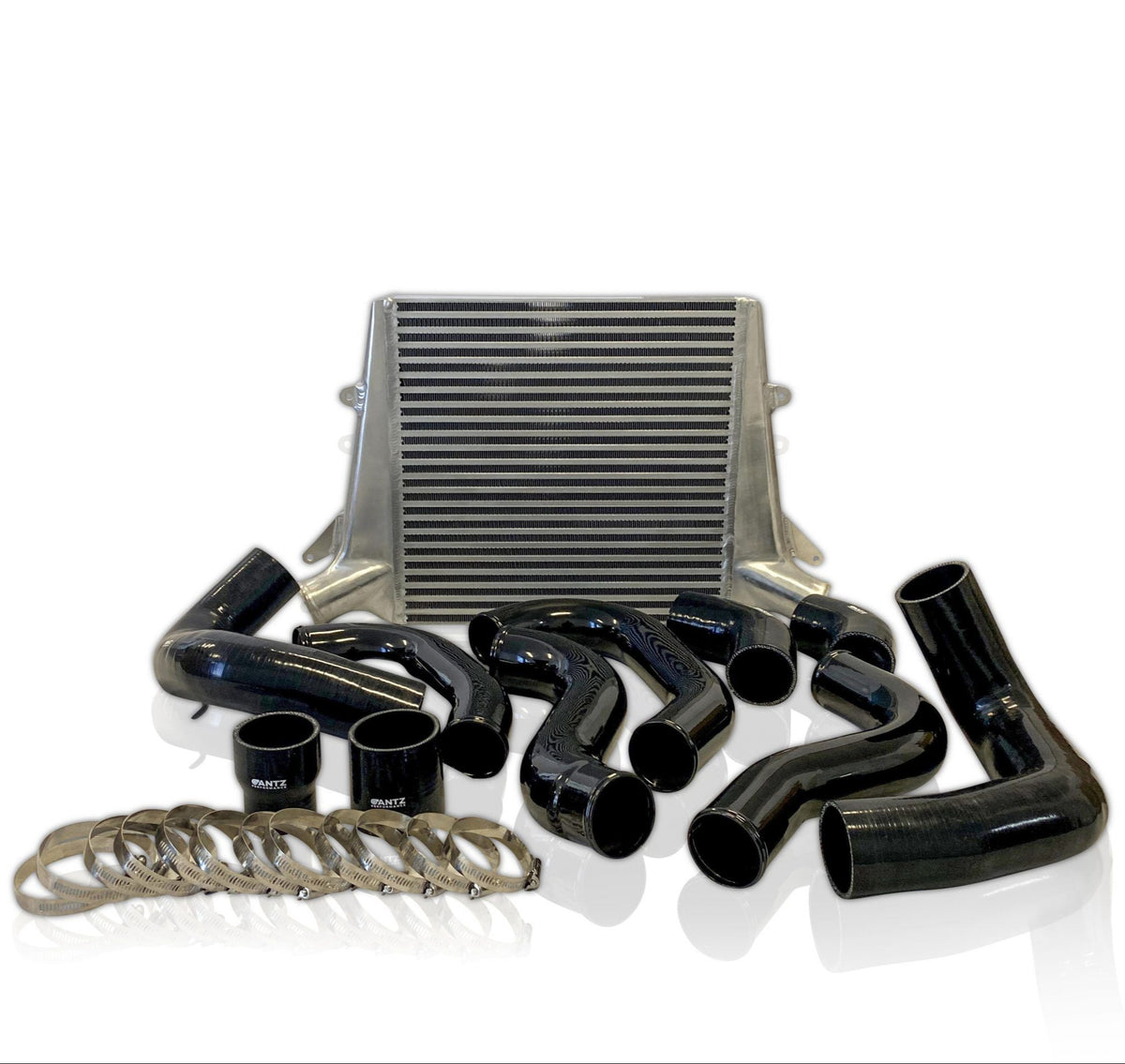

Aftermarket intercooler piping is required for use with this intercooler as factory piping will not fit (Aftermarket piping is supplied with this bundle). Dimensions of bar & plate core: 410 x 400 x 90mm. Tig welded construction Raw aluminium finish 2.5" (64mm) inlet and outlet. Proven to effectively reduce air temperatures for a high performance application. Utilises factory intercooler mounting points for an easy installation and fitment (Fitting guide provided on our fitting section) Intercooler core is approximately 10kg. Piping kit includes a 2.5" (64mm) hot side piping and a 2.75" (70mm) cold side aluminium piping. Please note: As for most Stage 2 intercoolers on the current market, minor cutting is required. Please see fitting guide.


OUR PROMISE:

We leak test all our intercoolers! We at ANTZ feel it is our duty to our customers to pressure check each intercooler to a minimum of 40 psi before they are packaged and sent out.

FG/FGX Stage 2 Intercooler Core FG/FGX Stage 2 Intercooler piping kit

  • Ford Falcon FG Turbo XR6 / F6
  • Ford Falcon FGX Turbo XR6 / F6
  • Compatible with all Ford Falcon FG-FGX Turbo Series (XR6/F6 - Sedan & Ute)
