DESCRIPTION:
For those builds chasing BIG power, it makes sense to go a ANTZ Performance competition intercooler.

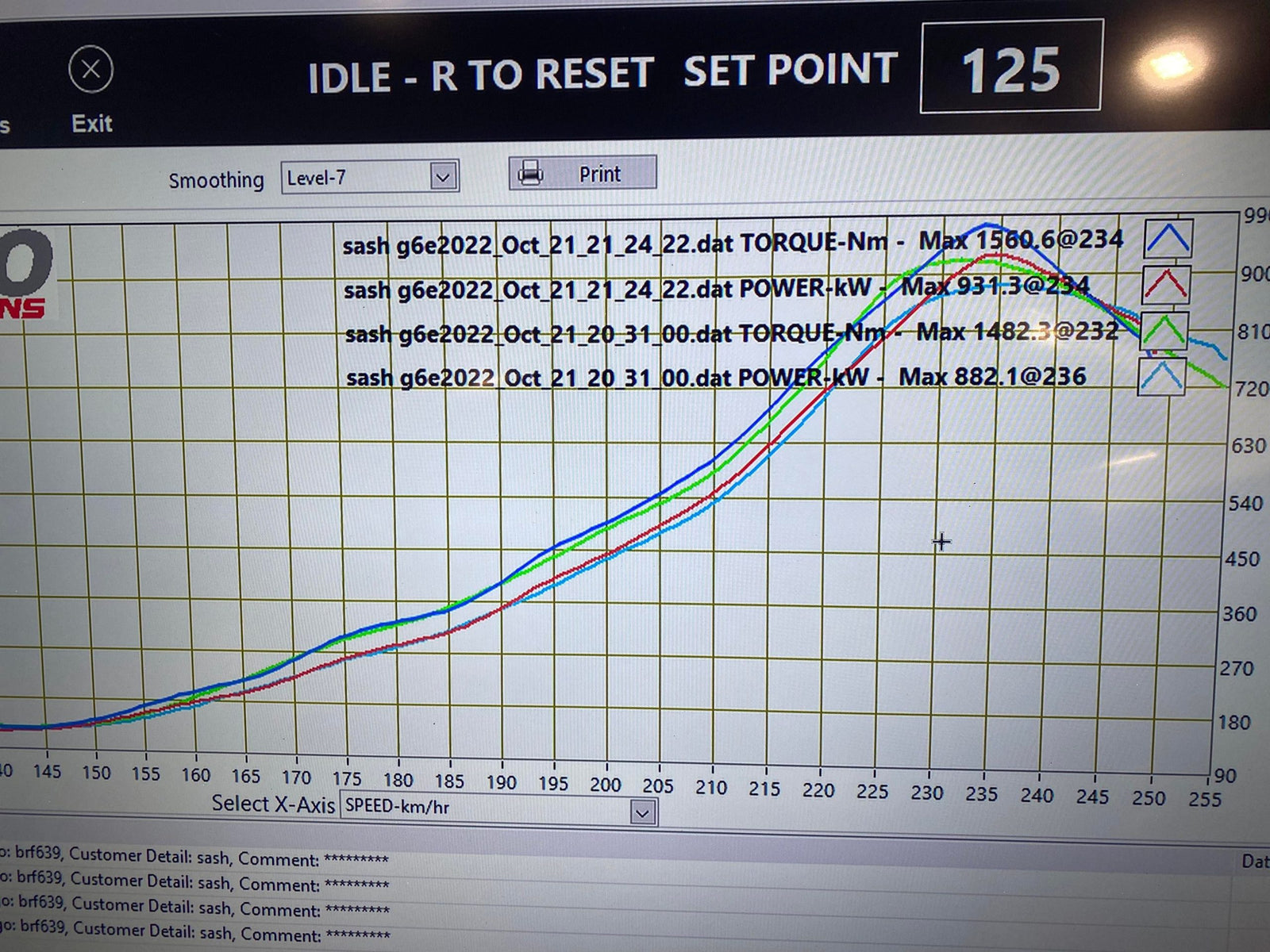

1250WHP flowing intercooler core! Real world data has shown Sasha's FGX G6ET ran our stage 3 intercooler with a GTX47. producing near 1250RWHP on 42 psi of boost pressure.
One of the biggest intercoolers available on the open market, the ANTZ Stage 3 bar & plate competition intercooler..
Proven to effectively reduce air temperatures for a high performance application.
Aftermarket intercooler piping to suit is included in the kit utilizing a 64-76mm hot side and a 76mm cold side setup.
Aluminium throttle body elbow included.
Silicon joiner is included for a 2.5″ turbocharger outlet to suit most aftermarket turbochargers.
The piping kit is constructed from CNC mandrel bent piping, finished in a gloss black powder coat.
Black silicon joiners constructed to a 4ply thickness to prevent ballooning on high boost applications.
Dimensions of bar & plate intercooler core: 500 x 420 x 100mm which consists of a TIG welded construction.
Available in a raw aluminium finish with 3″ (76mm) inlet and outlet end tanks.
Intercooler core is approximately 14kg.

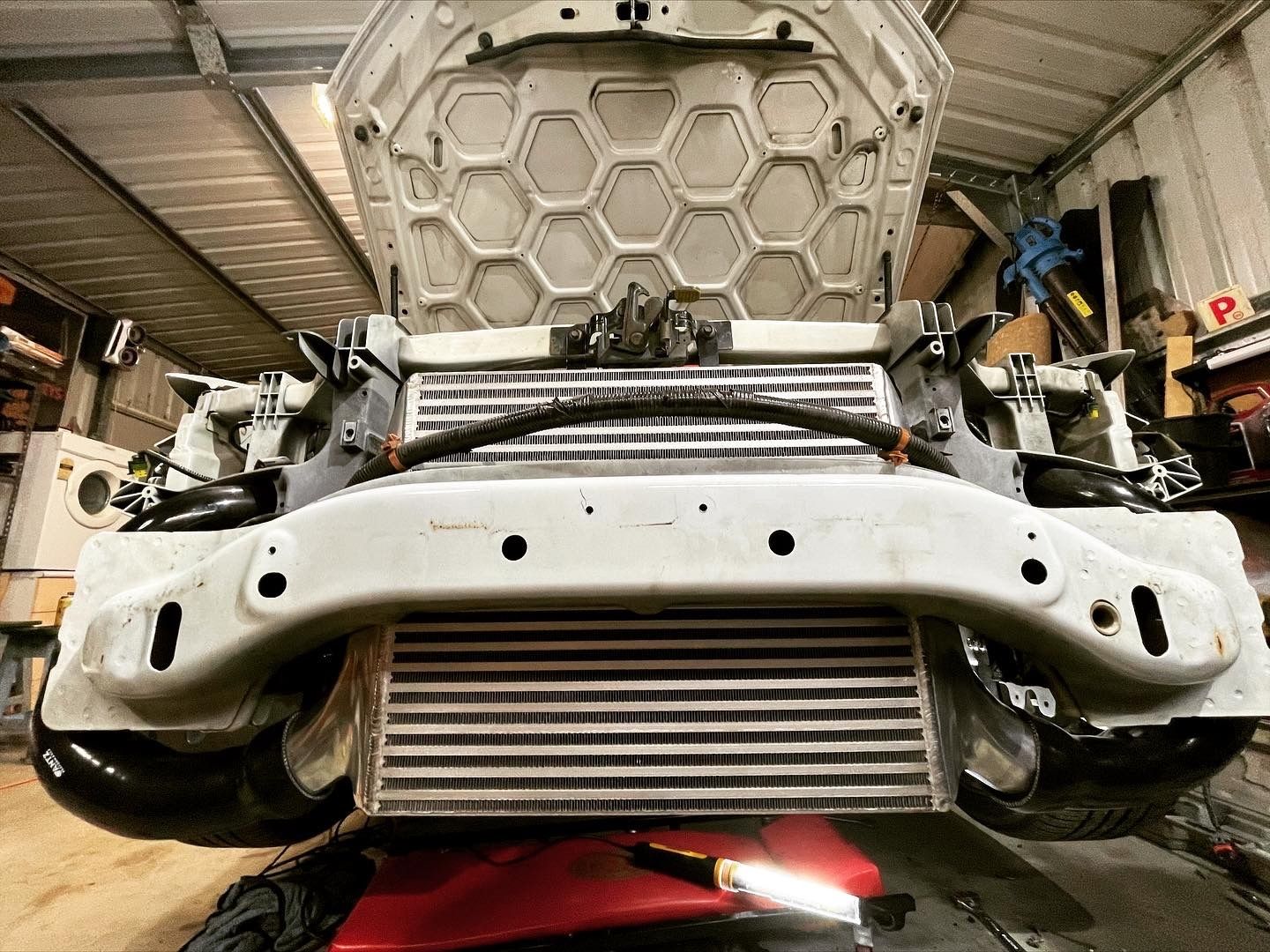

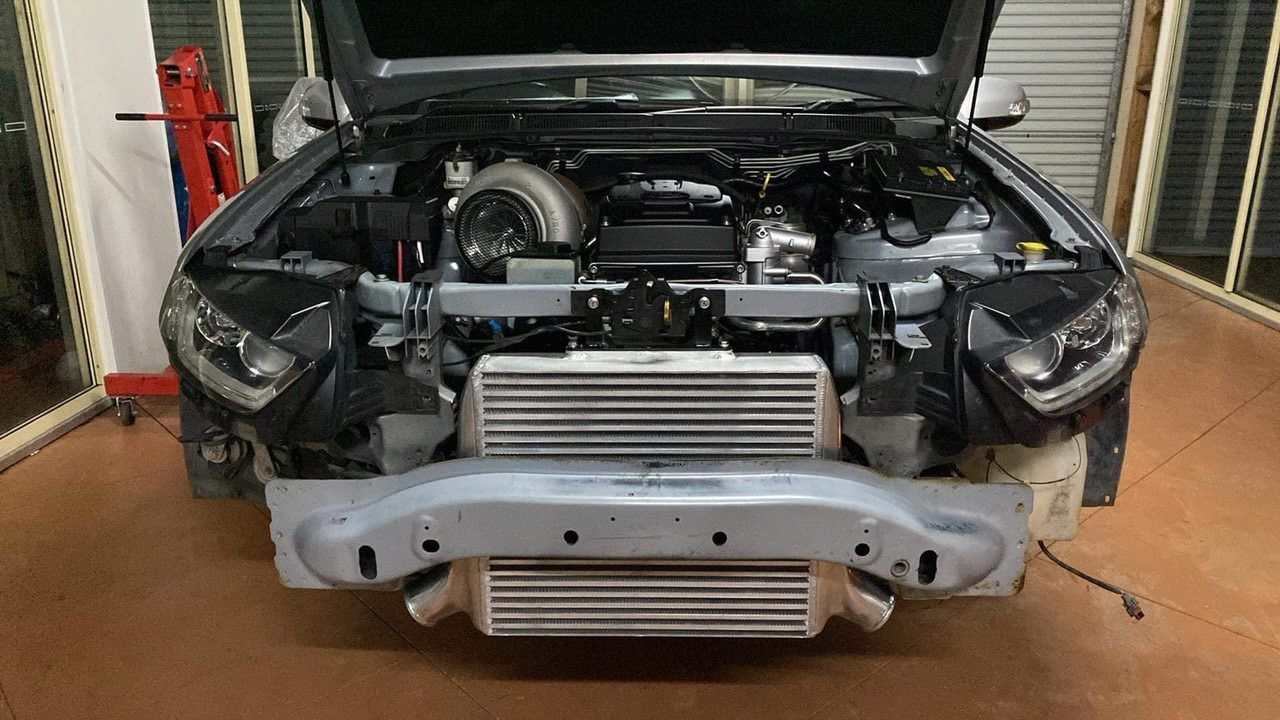

Please note: As for most Stage 3 intercoolers on the current market, cutting is required for fitment.

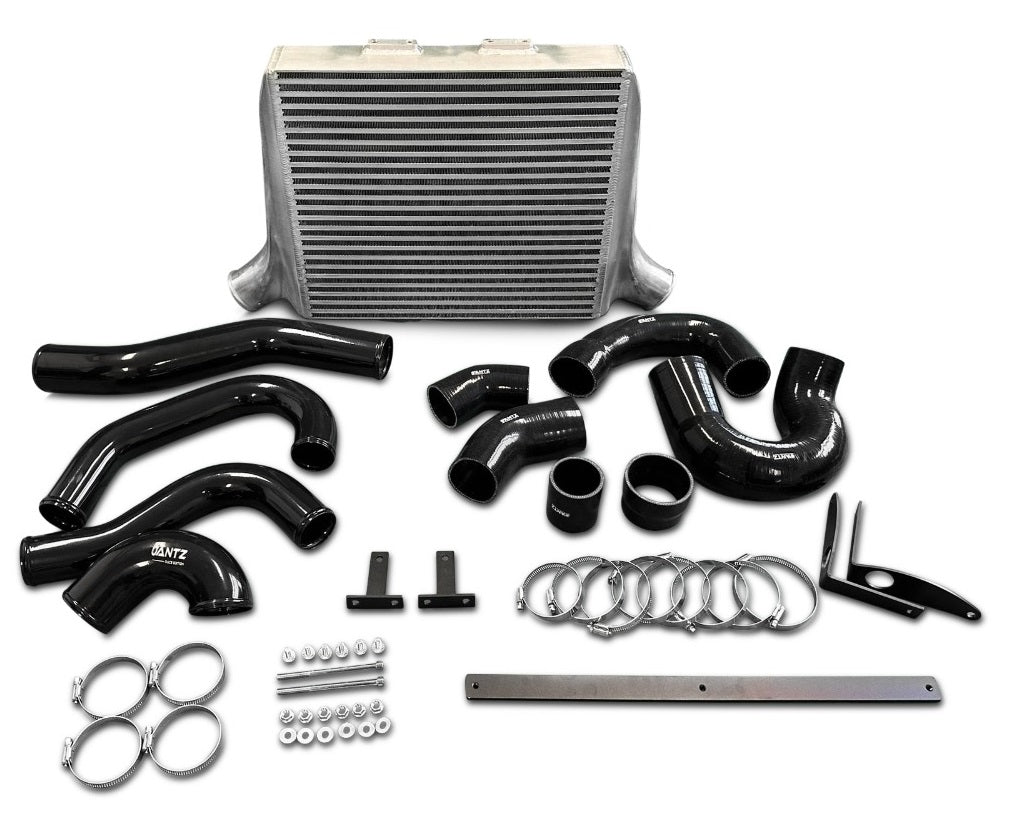

KIT INCLUDES:
1 x ANTZ Stage 3 Intercooler
1 x ANTZ Stage 3 Intercooler Piping Kit
All necessary hardware and brackets included for an easier installation and fitment
APPLICATIONS:
Ford Falcon FG Turbo XR6 / F6
Ford Falcon FGX Turbo XR6 / F6
All FG and FGX Turbo models (Ute and Sedan)
OUR PROMISE:
We leak test all our intercoolers! We at ANTZ feel it is our duty to our customers to pressure check each intercooler to a minimum of 40 psi before they are packaged and sent out.
