GCG5452R Bolt On Upgrade Turbo Charger AMG A45 + VR2 BOV CLA45 13-19 Mercedes Benz

Turbosmart BOV Kompact EM Dual Port VR2 is included with this turbocharger kit

DESCRIPTION:

For those looking at upgrading to a stage 3 setup, this in combination with our downpipe kit and intake kit have shown real world results of approx 400HP at all four wheels!

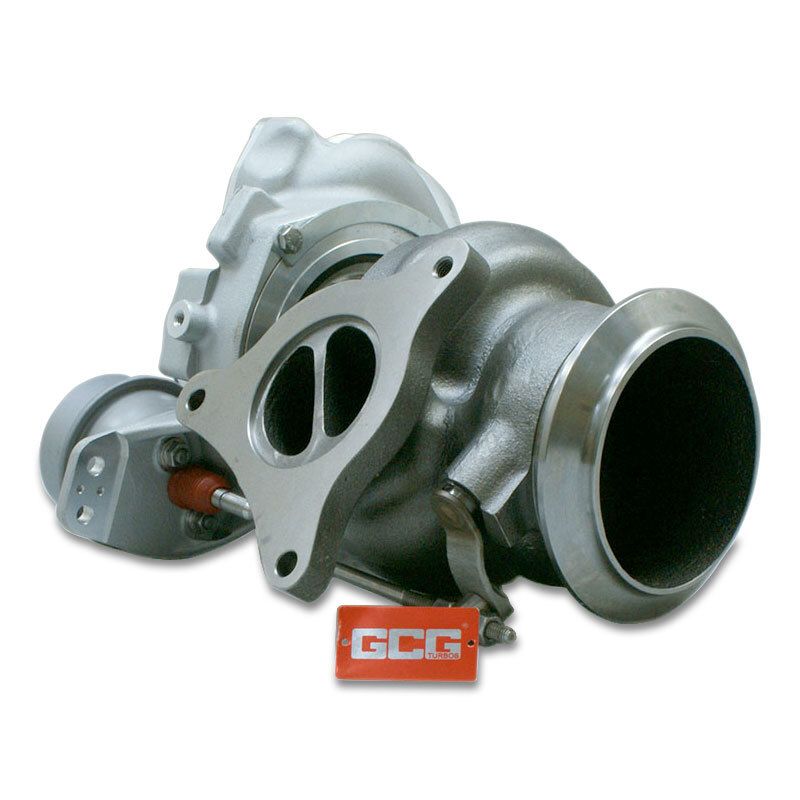

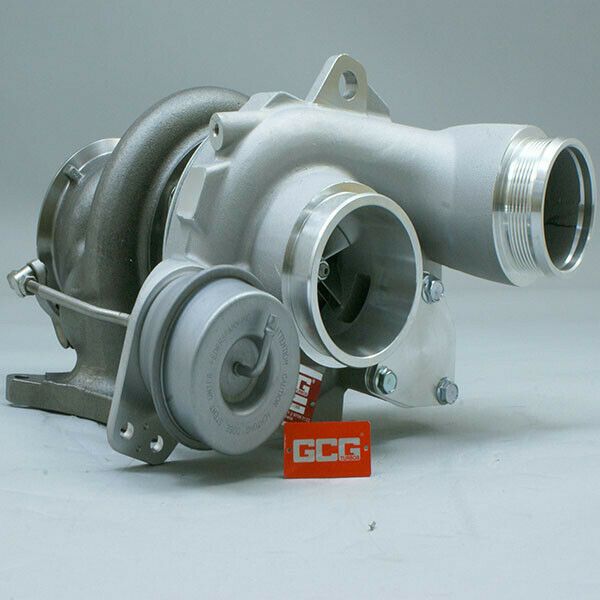

This custom built GCG5452R comes designed to bolt into the stock turbocharger location on the Mercedes Benz A45 CLA45 GLA45 AMG models. The turbocharger retains the factory twin scroll turbine housing, and also retains the factory compressor housing, to allow this turbocharger to bolt directly back onto the vehicle without any further fitment modifications. Replacement oil and water lines are also included, as the new core used has different thread adaptation.

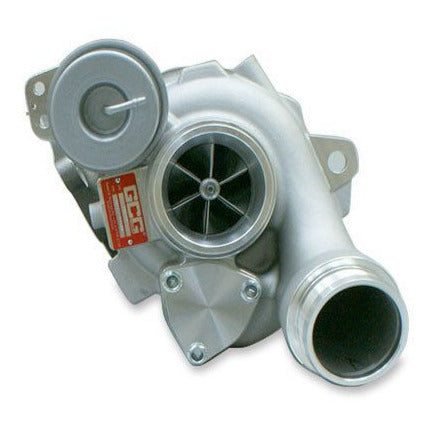

The factory Borg Warner turbocharger on these vehicles works extremely well in a mildy tuned application, and is known for it's response and overall flow potential. However, once higher boost levels are required, it starts to run out of efficiency. This is where the custom GCG5452R comes into play. The Ball Bearing CHRA provides more power throughout the rev range, and utilizes a billet 6+6 blade compressor wheel, which is a larger diameter than the factory turbocharger. The Turbine is a mid trim GT30 Series variant.

This particular turbo combination is for those wanting more top end power than low down response.

Response: Test vehicle used showed full boost (30psi) at approx 4500rpm.

HP Rating: 550bhp

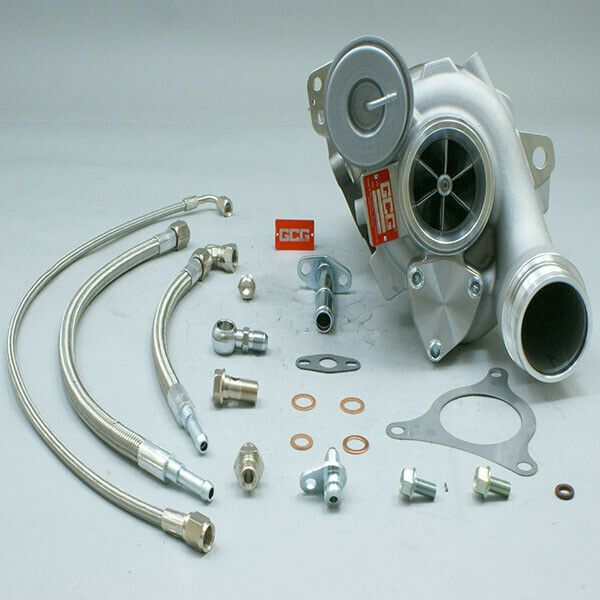

KIT INCLUDES:

GCG5452R Custom Built Bolt-On Turbocharger

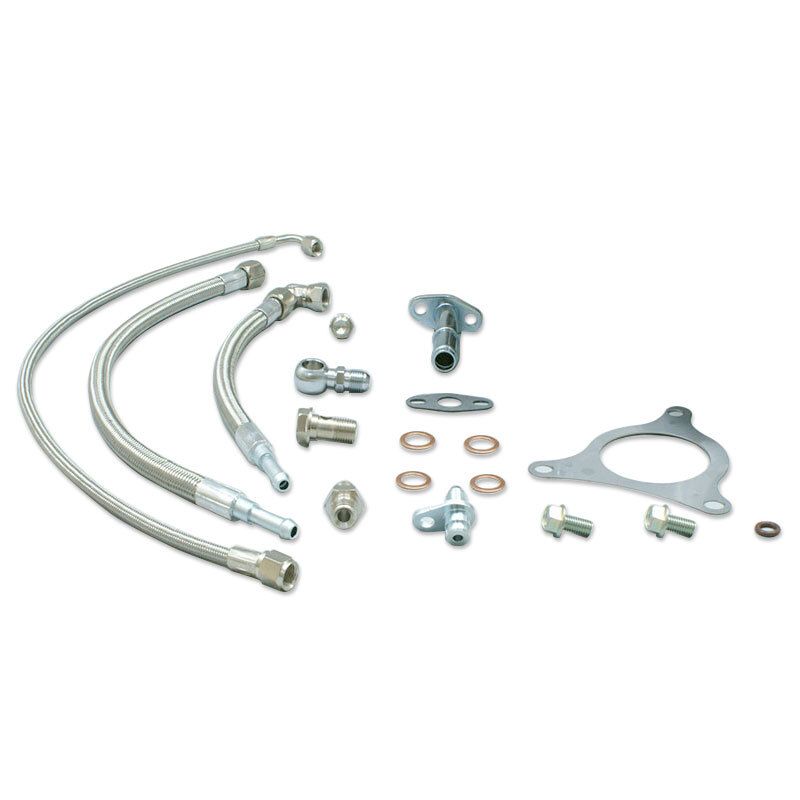

Oil feed and water fittings, copper washers & fasteners

Steel braided oil and water lines

APPLICATIONS:

2013-2018 Mercedes Benz AMG A45 W176 (M133.980 2.0L)

2013-2019 Mercedez Benz AMG CLA45 C117/X117 (M133.980 2.0L)

2014-2019 Mercedez Benz AMG GLA45 X156 (M133.980 2.0L)

NOTES:
